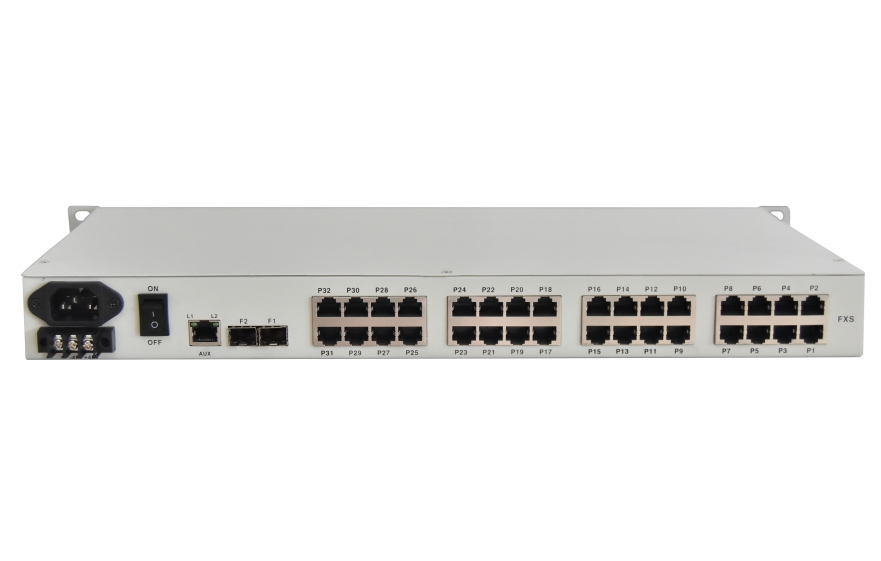

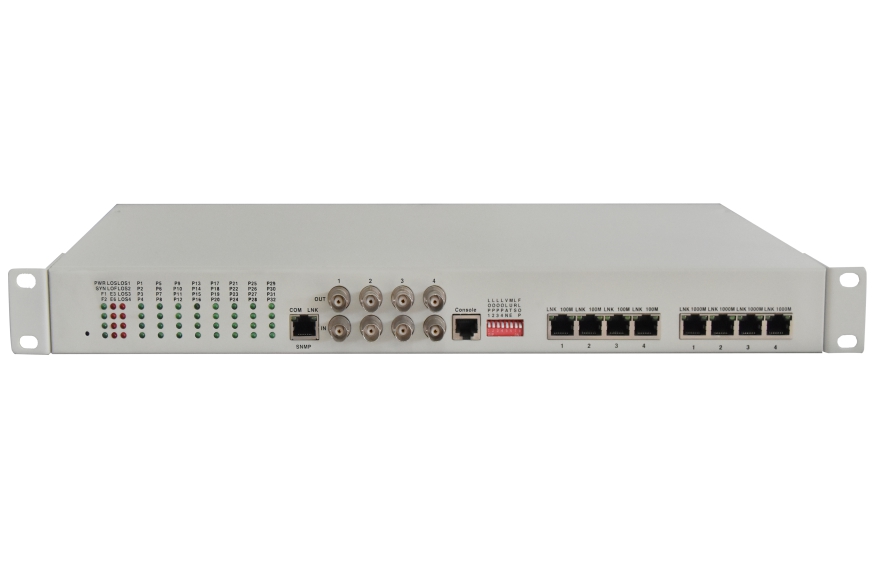

Type:FCP-O32E4F4pG4p/FCP-S32E4F4pG4p MessageShare
Description:This product is the companys 6.0G optical transmission platform ba
◆ Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
◆ FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
◆ Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
◆ Dimension
Product Size: Mini Type 216X140X31mm(WXDXH)
19inch 485X200X45mm(WXDXH)
Piece Weight : mini 1KG / 19inch 2.4KG
◆ Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
